CT-2PM

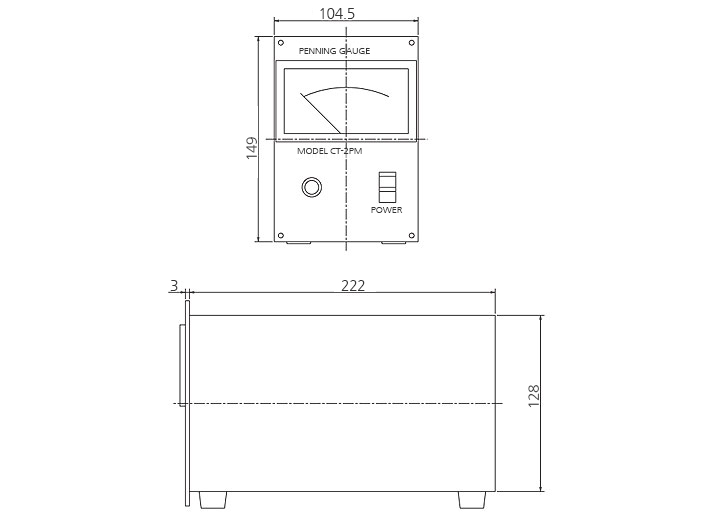

Floor Plan
Technical Specification
| Measuring range | 1.3 X 101 to 1.3 X l0-4 Pa |
| Measuring range | 1-range |
| REC OUTPUT | DC 0 to 10mV |
| Contact point capacity(M) | No, NC-contact point |
| Service temperature | 0 to 40℃ |
| Power voltage | AC100V 11VA |
| Gauge head | C-1A ( Φ15 ) |
Features
- 측정자의 분해세정 가능
- 회선보호 회로 설치
- PT-3PM을 조립하여 다목적으로 사용
- Simple key operation
- Two set-points equipped
- Recording output installed
- Equipped with RS422A serial communication (optional), and with 1 line of it up to 16 units can be controlled, data-wise, with a host computer, to fit to AF system
- For various vacuum systems
