CT-3DA

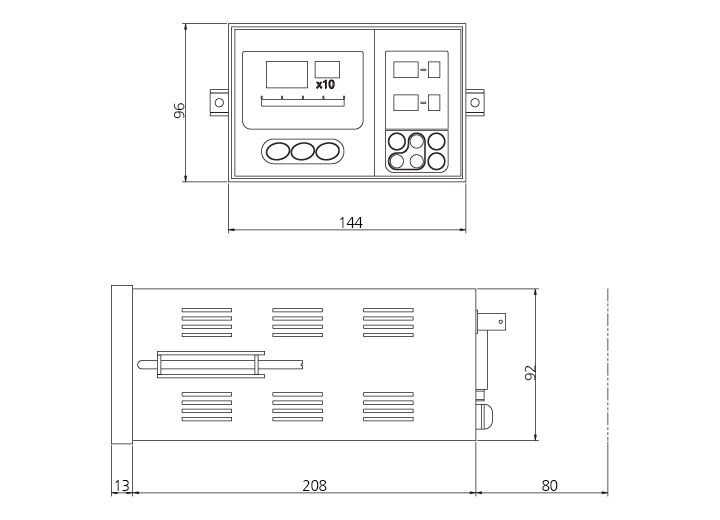

Floor Plan

Technical Specification
Measuring range 4.9 X 10-1 to 1.0 X l0-6 Pa
Sampling cycle 100 msec
Exterior output Set-point 2 points
Auxiliary function hysterics value, output theory
Rathg AC110V 0.5A load resistance
Status AC110V 0.5A load resistance
REC OUTPUT full range DC 0 to 5V/0 to 10V
Service temperature 0 to 40℃
Input from outside INT/EXIT, DISCHARGE ON/OFF
Power voltage AC100-240V 50/60Hz 30VA
Gauge head C-4A ( Φ15, option-NW25, ICF70 )
Features
  • 넓은 측정 범위
  • 금속제 측정자로 Baking 및 분해세정이 편리
  • 장기간의 연속측정가능
  • The key operation is sipmle.
  • The set point is equipped with two
  • With the recorder output
  • It is equipped with RS485/RS422 serial communication(option) and it controls it with the host computer to 16 1 lines
  • It is possible to do the data management and is supports to make FA.
  • Various for the vaccum equipment
