PT-4P

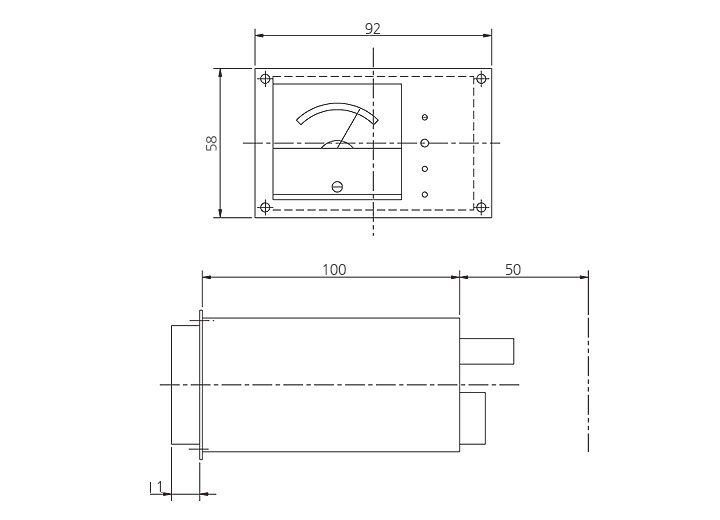

Floor Plan
Technical Specification
| Measuring range | 1.3 X 10 to 1.3 X l0-1 Pa |
| Range | 1-range |
| Measurement | constant voltage measuring circuit |
| REC OUT output | DC 0 to 10mV |
| Service temperature | 0 to 40℃ |
| Power voltage | AC100V 50/60Hz 2VA |
| Gauge head | P-3 (Φ15 ) |
Features
- 소형 Analog미터 사용
- 필라멘트 Au-Coating 사용 수명이 길다
- 저가격, 소형, 경량제품
- 오염에 강함
- Small-sized analog meter adopted
- Low-price
- Recorder output attached
- Compact and light-weight
- For pressure monitoring
- For research and development
