PT-3DA

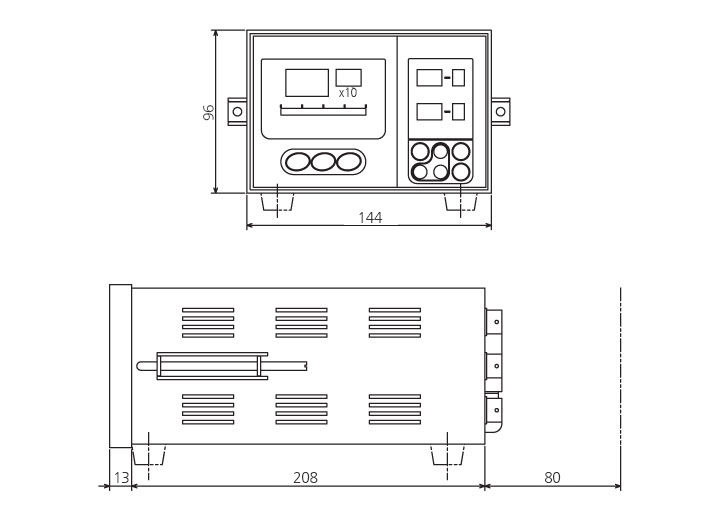

Floor Plan
Technical Specification
| Measuring range | 10 X 105 to 1.0 X l0-1 Pa | |
| Sampling cycle | 100 msec | |
| Exterior output | Set-point | 6 points |
| Auxiliary function | hysterics value, output theory | |
| Rathg | AC110V 0.5A load resistance | |
| Status | AC110V 0.5A load resistance | |
| REC OUTPUT | full range DC 0 to 5V/0 to 10V | |
| Service temperature | 0 to 40℃ | |
| Power voltage | AC100-240V 50/60Hz 30VA | |
| Gauge head | PSG-1 ( Φ15, option-NW16 ) | |
Features
- 자동온도 조절시스템 제어기능(히스테리시스치)
- BCD출력 등 확장기능으로 장치제어 FA화 적당
- 6점 Set point 출력
- The key operation is simple.
- The set point is equipped with six.
- With the recorder outpit.
- It is equipped with RS485/RS422 serial communication(option) and it controls it with the host computer to 16 1 lines.
- It is possible to do the data management and it supports to make FA.
- It is possible to connect a measurement child in a maximum of three. Option
- The simultaneous display is possible in three measures with multi-display mode feature of it.
- Various for the vaccum equipment.
