NON ROTATABLE VF BORED FLANGES

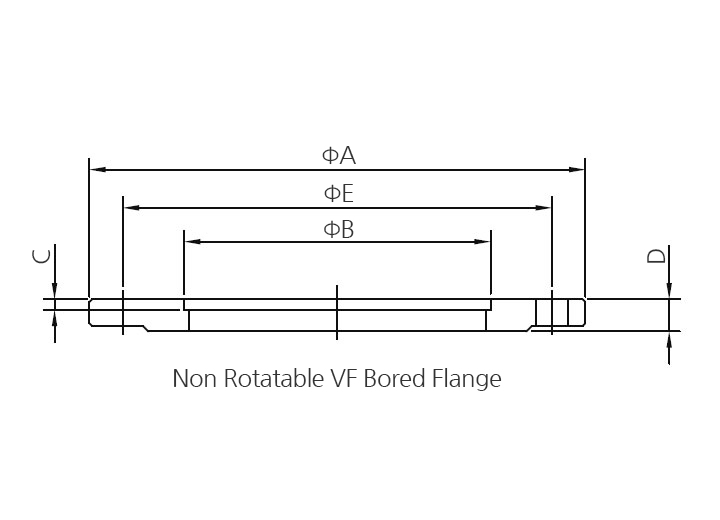

Floor Plan
Technical Specification
| Flange Type(JIS) | Reference | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | E(mm) | |
|---|---|---|---|---|---|---|---|---|
| A | B | |||||||
| 10 | 3/8 | VF 10 | 70 | 17.3 | 2.5 | 8 | 50 | 4 - 10 |
| 20 | 3/4 | VF 20 | 80 | 27.2 | 2.5 | 8 | 60 | 4 - 10 |
| 25 | 1 | VF 25 | 90 | 34.0 | 3 | 8 | 70 | 4 - 10 |
| 40 | 1 1/2 | VF 40 | 105 | 48.6 | 3 | 10 | 85 | 4 - 10 |
| 50 | 2 | VF 50 | 120 | 60.5 | 3 | 10 | 100 | 4 - 10 |
| 65 | 2 1/2 | VF 65 | 145 | 76.3 | 3 | 10 | 120 | 4 - 12 |
| 80 | 3 | VF 80 | 160 | 89.1 | 4 | 12 | 135 | 4 - 12 |
| 100 | 4 | VF 100 | 185 | 114.3 | 4 | 12 | 160 | 8 - 12 |
| 125 | 5 | VF 125 | 210 | 139.8 | 4 | 12 | 185 | 8 - 12 |
| 150 | 6 | VF 150 | 235 | 165.2 | 4 | 12 | 210 | 8 - 12 |
| 200 | 8 | VF 200 | 300 | 216.3 | 7 | 16 | 270 | 8 - 15 |
| 250 | 10 | VF 250 | 350 | 267.4 | 7 | 16 | 320 | 12 - 15 |
| 300 | 12 | VF 300 | 400 | 318.5 | 7 | 16 | 370 | 12 - 15 |
| 350 | 14 | VF 350 | 450 | 355.6 | 9 | 20 | 420 | 12 - 15 |
| 400 | 16 | VF 400 | 520 | 406.4 | 9 | 20 | 480 | 12 - 19 |
| 450 | 18 | VF 450 | 575 | 457.2 | 9 | 20 | 535 | 16 - 19 |
| 500 | 20 | VF 500 | 625 | 508.0 | 10 | 22 | 585 | 16 - 19 |
| 550 | 22 | VF 550 | 680 | 558.8 | 11 | 24 | 640 | 16 - 19 |
| 600 | 24 | VF 600 | 750 | 609.6 | 11 | 24 | 700 | 16 - 23 |
| 650 | 26 | VF 650 | 800 | 660.4 | 11 | 24 | 750 | 20 - 23 |
| 700 | 28 | VF 700 | 850 | 711.2 | 11 | 26 | 800 | 20 - 23 |
| 750 | 30 | VF 750 | 900 | 762.0 | 11 | 26 | 850 | 20 - 23 |
| 800 | 32 | VF 800 | 955 | 812.8 | 11 | 26 | 905 | 24 - 23 |
| 900 | 36 | VF 900 | 1065 | 914.4 | 11 | 28 | 1015 | 24 - 25 |
| 1000 | 42 | VF 1000 | 1170 | 1016.0 | 11 | 28 | 1120 | 24 - 25 |
Features
