LAV TYPE

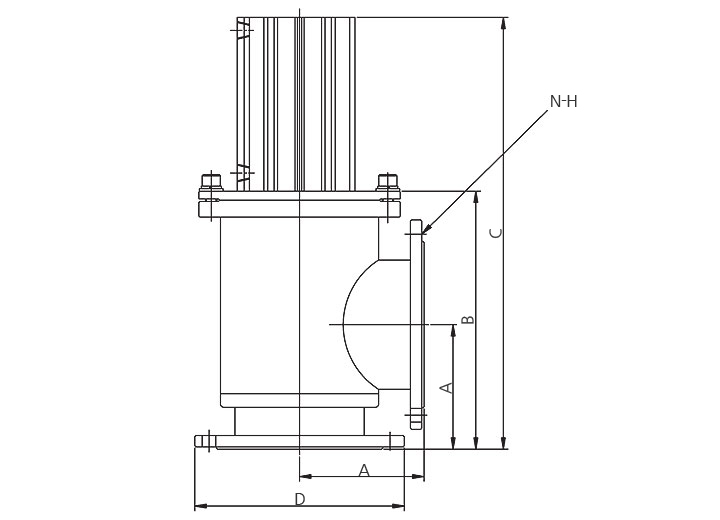

Floor Plan
Technical Specification
| Reference | A | B | C | ΦD | ΦH | N | Fitting |
|---|---|---|---|---|---|---|---|
| LAV-1B | 55 | 102 | 195 | 90 | 10 | 4 | 1/8 |
| LAV-2B | 75 | 139 | 258 | 120 | 10 | 4 | 1/4 |
| LAV-3B | 95 | 187 | 321 | 160 | 12 | 4 | 1/14 |
| LAV-4B | 110 | 220 | 381.5 | 185 | 12 | 8 | 3/8 |
| LAV-6B | 130 | 270 | 488.5 | 235 | 12 | 8 | 3/8 |
| LAV-8B | 175 | 295 | 628.5 | 300 | 15 | 8 | 3/8 |
| LAV-10B | 200 | 400 | 709.5 | 350 | 15 | 12 | 3/8 |
| LAV-14B | 260 | 510 | 918.5 | 450 | 15 | 12 | 1/2 |
| LAV-16B | 310 | 657 | 1098 | 520 | 19 | 12 | 3/4 |
| LAV-22B | 450 | 854 | 1410 | 680 | 19 | 16 | 3/4 |
| LAV-26B | 470 | 945 | 1766 | 840 | 23 | 20 | 3/4 |
| LAV-28B | 470 | 940 | 1564 | 850 | 23 | 20 | R3/4 |
| LAV-36B | 600 | 1216 | 2178 | 1065 | 25 | 24 | R3/4 |
Features
